Examples

Simulation examples.

Browse thermal and flow simulations, from practical applications to validation against experiments.

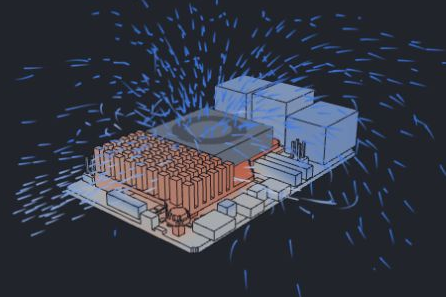

Interactive simulation of temperatures and airflow around a Raspberry Pi 5 with its Active Cooler
  • Electronics cooling
  • Natural convection
  • Forced convection
  • CHT
  • RANS

Raspberry Pi 5 cooling

Compare a bare board with the Active Cooler. Explore component temperatures and airflow, then download both cases to run or adapt through the API.

2 configurations · Python + JSON downloads

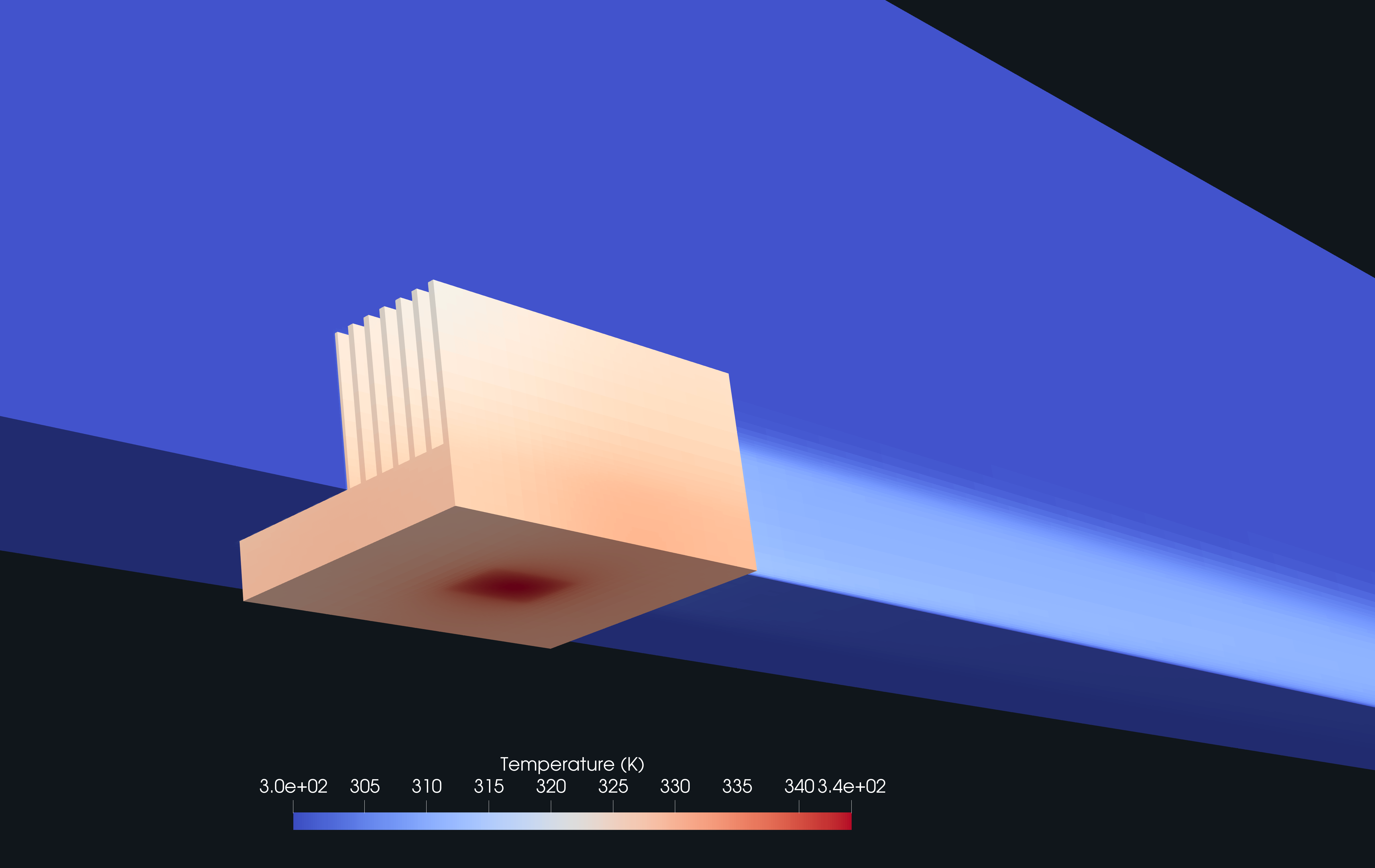

Simulated temperature field through a plate-fin heat sink
  • Validation
  • Forced convection
  • CHT
  • RANS

Plate-fin heat sink

Conjugate heat transfer through a finned heat sink, comparing junction temperatures and thermal resistance with experimental measurements.

7 cases · Under 8 minutes

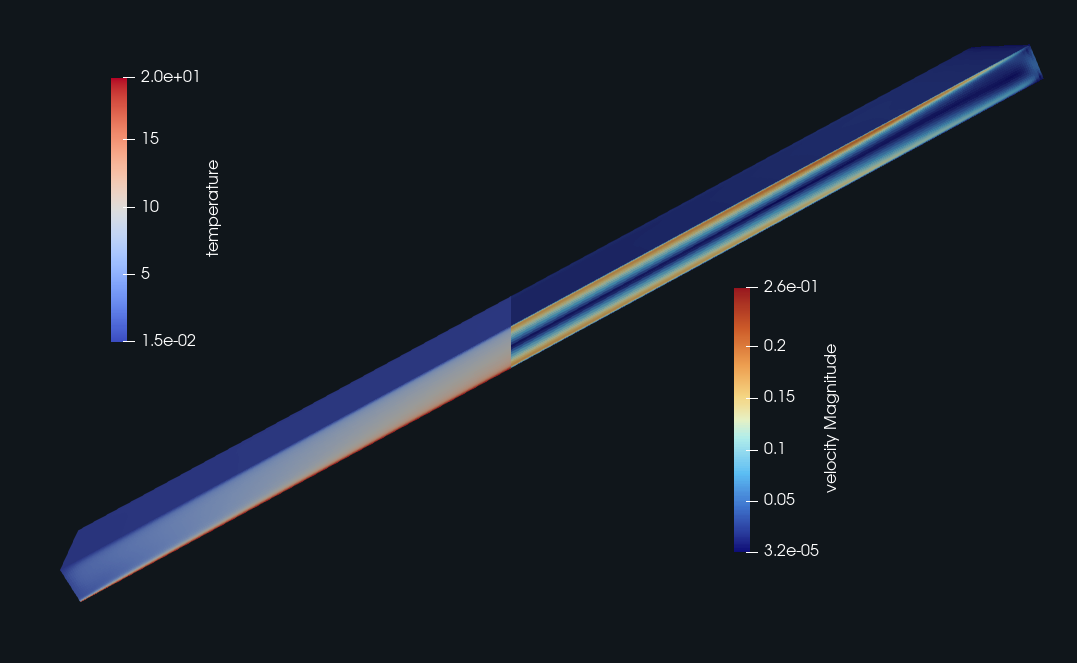

Simulated temperature and velocity fields in a natural-convection cavity
  • Validation
  • Natural convection
  • RANS

Natural convection in a heated cavity

Buoyancy-driven flow in a heated cavity, comparing temperature and velocity profiles with experiments, OpenFOAM, and Ansys Fluent.

3.8 million cells · 4 minutes
